All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, Improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment. Connecticut Series hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.
Connecticut Series

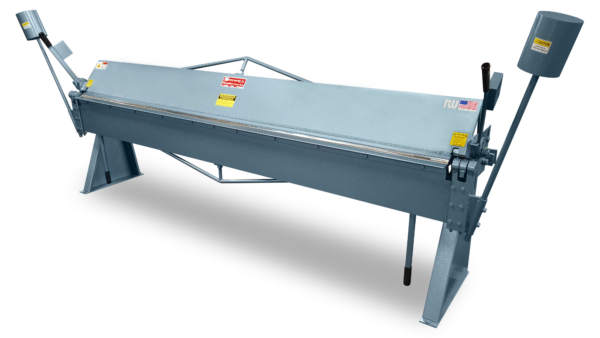

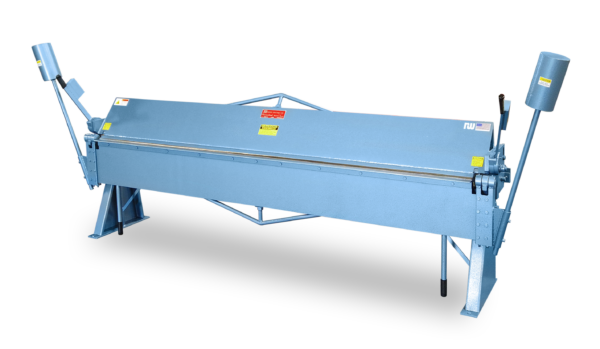

Connecticut Series floor-mounted manual bending brakes are precision machines designed for accurate bending within rated capacities.
Description
Features of the Connecticut Bending Brake:
- Positive clamping pressure adjustment
- Apron stop rod for repeat bends
- Long handles for extra leverage
- Work support angle bar for full capacity
- 1-inch minimum flange
- Improved leg design for lighter weight
- All-steel construction
- Heavy tie rods for minimum deflection
- Removable bending bar and angle
- Adjustable apron hinges
- Positive rear material gauge adjustment
model specifications
| 816 | 1018 | 1016 | 1014 | |
|---|---|---|---|---|
| Capacity with bending bar/angle in place, Mild Steel - 1" Flange | 16 Gauge 1.60 mm |
18 Gauge 1.25 mm |
16 Gauge 1.25 mm |
14 Gauge 2.00mm |
| Capacity with bending angle removed, Mild Steel - 1" Flange | 20 Gauge 1.00 mm |
22 Gauge 0.76 mm |
20 Gauge 1.00 mm |
18 Gauge 1.25 mm |
| Capacity with bending bar/angle removed, Mild Steel - 1" Flange | 24 Gauge 0.61 mm |
26 Gauge 0.50 mm |
24 Gauge 0.61 mm |
22 Gauge 0.76 mm |
| Bending Length | 97 in. 2464 mm |
121 in. 3073 mm |
121 in. 3073 mm |
121 in. 3073 mm |
| Maximum Lift Of Beam | 1-1/4 in. 41 mm |
1-1/4 in. 41 mm |
1-5/8 in. 57 mm |
1-5/8 in. 57 mm |
| Front To Rear Beam Adjustment | 1-1/8 in. 28.5 mm |
1-1/8 in. 28.5 mm |
1-3/8 in. 35.0 mm |
1-3/8 in. 36.0 mm |
| Minimum Reverse Bend (bar and angle removed) | 1/4 in. 6 mm |
1/4 in. 6 mm |
1/4 in. 6 mm |
1/4 in. 6 mm |
| Minimum Flange In Capacity Material | 1 in. 25 mm |
1 in. 25 mm |
1 in. 25 mm |
1 in. 25 mm |
| Dimensions (counterweights in place) | 140 x 52 x 60 in. 3556 x 1321 x 1524 mm |
159 x 52 x 60 in. 4039 x 1321 x 1524 mm |
161 x 53 x 60 in. 4090 x 1347 x 1524 mm |
161 x 53 x 60 in. 4090 x 1347 x 1524 mm |
| Shipping Weight | 1640 lbs. 746 kg |
2200 lbs. 1000 kg |
2660 lbs. 1200 kg |
2960 lbs. 1343 kg |
Related products
This product has multiple variants. The options may be chosen on the product page

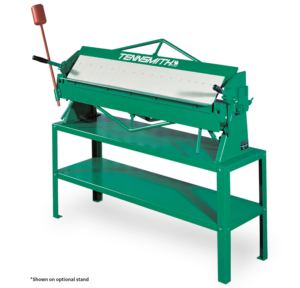

Tennsmith Bench Model Hand Brakes
